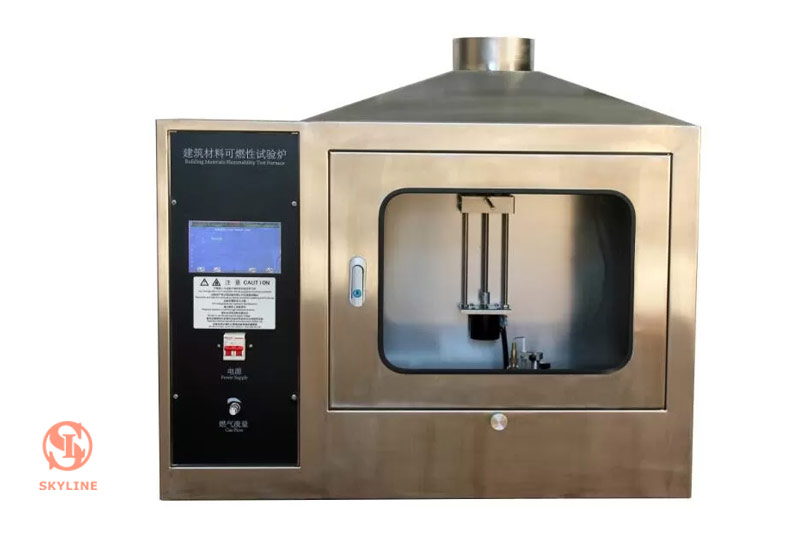

Building Materials Combustion Test Equipment

Get in Touch

Building Materials Combustion Test Equipment Information

Building materials combustion test equipment is used to test the flammability of building materials. The purpose of these tests is to determine the fire resistance of the materials, as well as to evaluate their behavior when exposed to a fire. This information is important for building designers, contractors, and fire safety professionals, as it helps to ensure that the materials used in a building are safe and will not contribute to the spread of a fire.

Application：
EN ISO 11925-2 building materials combustion test equipment to determine the ignitability of building products subjected to direct impingement of vertical.

Standard：
EN ISO 11925-2, DIN 53438, DIN 41.

Technical parameters：

Burner Angel	45 Degree
Anemometer	±0.1m/s
Gas Pressure	10kpa~50kpa
Power	AC220V±10%，50Hz
Timer Accuracy idity	≤1s/h
Material	1.5mm stainless steel
Cabinet size	width 835 × deep 400 × high 815mm
Packing dimension	Length103width50height100mm
Cabinet size	width 835 × deep 400 × high 815mm
Packing dimension	Length103width50height100mm
Gross weight	82.5kg
