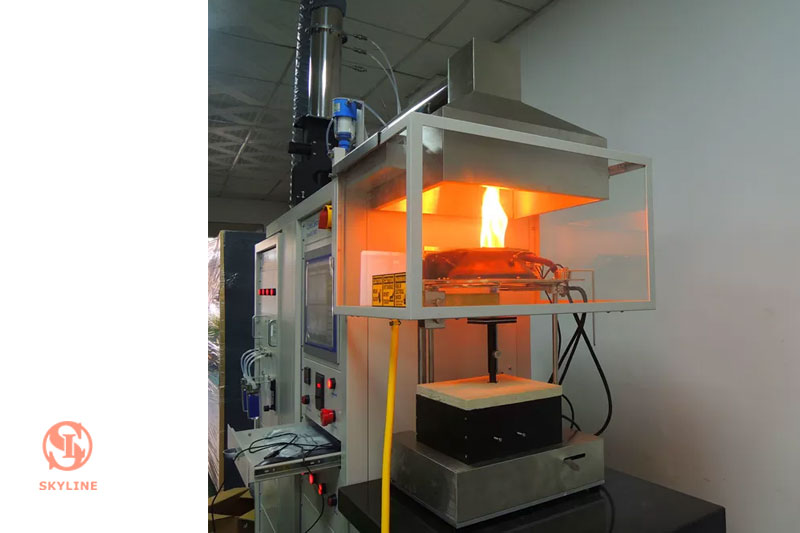

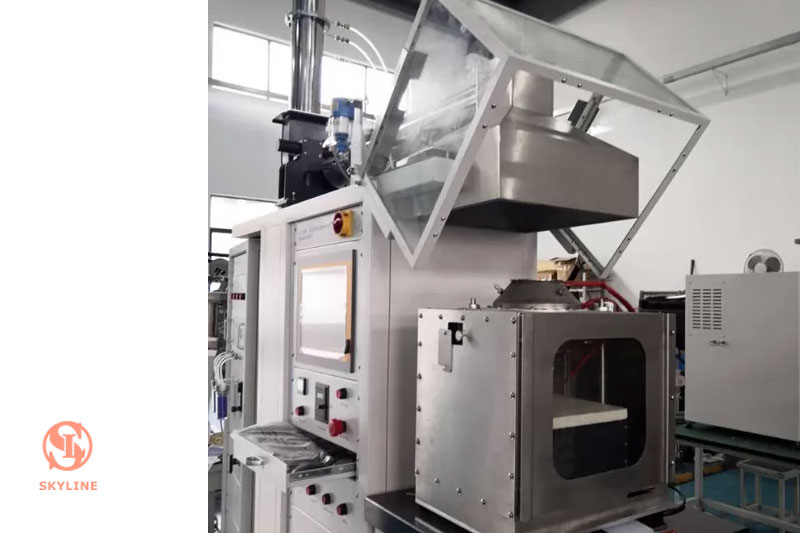

Product Feature and Application：
1.Cone Calorimeter with movable analysis cabinet, can be connected with a large heat release rate test system such as ISO 9705, EN 13823 etc, complied with ISO 5660, ASTM E1354,BS 476 Part 15 etc. testing standards.
2.Integrated test body and 19 inches analysis cabinet, embedded PC 15 Inch Touch screen computer, for the whole control and automatic testing.
3.Conical heater rated power 5000W, the heat output of 0 ~ 100kW/m2, using PID temperature controller, while the radiation cone can be horizontal or vertical.
4.Exposed to the central part of the surface of the sample 50 x 50mm range, radiation at the center of the deviation is not more than 2%.
5.The sample weighing range 0 ~ 3000g; accuracy: 0.1g.
6.Auto Split Shutter automatically opened to transmit radiation to the sample.
7.ABB EL3020 Paramagnetic oxygen analyzer, using the method of paramagnetic change to measure the concentration of oxygen in the gas. Concentration range of 0-25%.
8.Smoke density analysis using laser system, the system consists of a 0.5mW He Ne laser, the main detector and auxiliary detector.
The exhaust system consists of the fan, the smoke collection cover, the exhaust pipe and orifice plate flow meter and so on. Exhaust fan flow rate of 0 ~ 50g/s, precision 0.1g/s.
9.Ring sampler have been installed from the smoke collecting hood at 685 mm, with 12 holes.
10.The exhaust flow rate should be determined by measuring the pressure difference on both sides of the sharp edge orifice 350 mm above the fan, the inner diameter of the sharp
edge orifice plate is 57mm + 1mm.
11.ABB SCC-S Gas sampling system comprises sampling pump, filter, cold trap, waste water discharge, water filters and CO2 filters;
Portable water cooling system without need for waterworks and plumbing when using the Heat Flux meter (for ISO 5660).
12.In order to calibrate the response of the whole test system, the use of a square opening brass calibration burner, used to measure the value of C- coefficient.
13.The data acquisition system be able to record oxygen analyzer, orifice meter, thermocouple and other instruments of the output.
Application: Suitable for testing the heat release rate of building materials, Rail,Wire Cable.
Standard：
-ISO 5660 fire reaction test, heat release rate, smoke rate and mass loss rate;
-ASTM E1354 Determination of heat and visible smoke release rate of materials and products using an oxygen consumption calorimeter;
-BS 476 Pt.15 combustion and structure test of building materials, determination of product heat release rate;
Technical parameters：
Power supply voltage
AC220V AC 50Hz
Maximum operating power
≥5KW
Cone heater power
≤5KW
Heat output heat
0~120KW/m2
The maximum placement of the sample box
100mm × 100mm × 50mm
Exhaust flow rate
0.012m3/s~0.035 m3/s (adjustable)
Timing value resolution
1s error <1s/n
Oxygen analysis
paramagnetic oxygen analyzer, concentration range 0-25%
The cone calorimeter is a widely used tool in the fire safety industry, and is also used in research and development to improve the fire resistance of materials and products.
Here is a general overview of the procedure for conducting a cone calorimeter test:1.Set up the cone calorimeter according to the manufacturer's instructions. This typically involves placing the specimen in the chamber and positioning the ignition source (such as a gas burner or electric heater).
