Main parameters |
test device with heating furnace, sample rack, airflow cover, thermocouple, voltage regulator, voltage regulator, control instrument, temperature recorder |
|

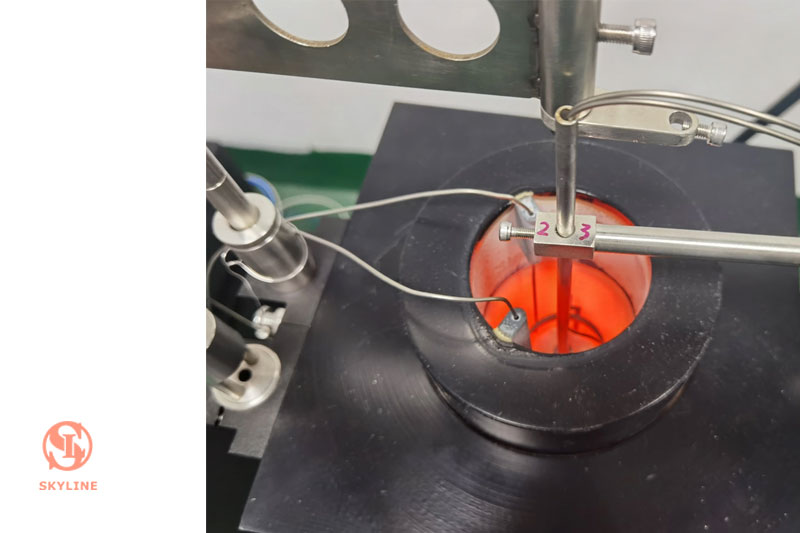

Heating furnace |
Φ95mm × Φ75mm × Φ150mm, 3mm × 0.2m nickel 80% chromium 20% resistance band |
|
Sample rack quality |
15g+2g |
|
Airflow cover |
Φ75mm×500mm |
|
Thermocouple |
Insulated Nickel Chromium Armor Φ3mm |
|
Voltage regulator |
1.5KVA, voltage stability within ±1% |
|
Voltage regulator |
0~100V |
|
Thermometer |
0~1000±5% |
|
Timer |
0~99h |
|
Flame application time and holding time |
can be adjusted within the range of 0~99 minutes and 99 seconds (15S for Bunsen burner flame time) |
|
The inner diameter of the burner |
Φ0.17mm and there are 4 Φ4mm air conditioning holes. Highly adjustable flame |
